Vis•Tex Tunnel UV System
The innovative, patented, EPA-registered Vis•Tex Tunnel UV System utilizes the latest UV technology to capture and treat press water, reducing the need for fresh water and energy while improving linen quality and reducing rewash. UV technology combined with advanced oxidation technology provides extraordinary microbial decontamination, assuring hygienically clean textiles.
Vis•Tex Tunnel UV System benefits:
- UV plus advanced oxidation technology provides microbial decontamination, assuring hygienically clean textiles.
- Powerful oxidizers deliver bright, white textiles, and provide excellent stain removal, reducing rewash.
- Water and energy savings from enhanced reuse water quality and production efficiencies.
- All backed up by Gurtler’s Expert Service Team!
- Gurtler’s Vis•Tex Tunnel UV System is a gamechanger! Our rewash percentage has dropped; we’ve cut the cycle time in the tunnel from 100 seconds to 90 seconds and increased the number of loads per hour by almost 20%.”
Frank Gagne, VP Operations, Crown Linen Services, Inc. Columbia, IL
- The Vis•Tex UV System innovation has really made a difference in the brightness and the quality of our product. Gurtler comes up with things that make it easier to service our accounts.”
Jamie Orlando, COO, Up-To-Date Laundry

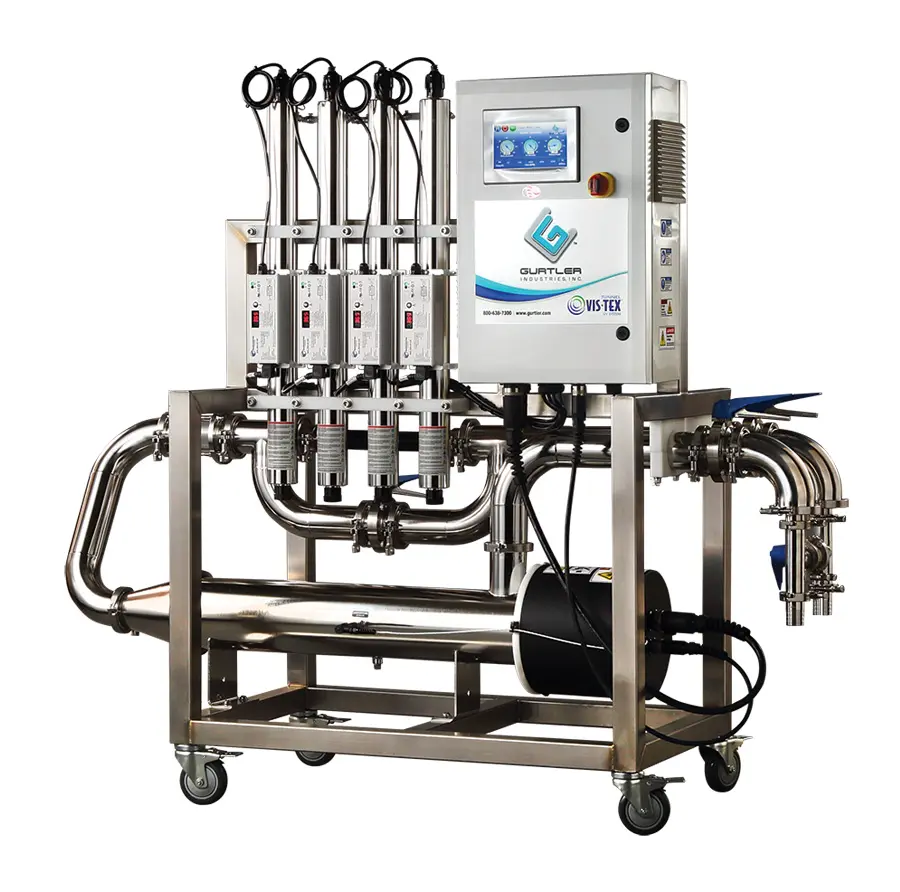

System Features
The Vis•Tex Tunnel UV Systems are designed specifically for commercial tunnel washer application. The control panel has the ability to monitor and log system performance, such as water flows, lamp life, utility usage, UV dose, and more. With automatic maintenance reminders, you will never miss a scheduled preventative maintenance task. The system is WIFI enabled for remote connectivity to view and monitor system status from your smart phone, tablet, or PC.
- Touch Screen HMI Interface with remote communication tool for real time data acquisition
- Digital water flow meter with LCD display and alarming function
- Integrated vac validation
- Clog-resistant venturi for increased flow with viewing sight glass
- 316L Stainless Steel reactor construction for all wetted surfaces with standard electro-polish finish (Ra40 Standard, Ra15 Optional)
- State-of-the-art electronic ballast provides variable output to regulate lamp intensity for power savings
- Small, flexible reactor footprint with L reactor flow pattern for simplicity
- Single end UV lamp and quartz sleeve for ease of service
- Choice of Inlet / Outlet Connection size (ANSI and Sanitary Ferrule)
| Model Number | Model 4 | Model 8 |
|---|---|---|
| Disenfection Flow Rate GPM (m3/hr) @ 95% UTV, 30mJ/cm2 Dose | 120 (27) | 240 (54) |
| Reactor Chamber | 316L Stainless Steel | 316L Stainless Steel |
| Number of Lamps in Reactor | 4 | 8 |
| 3A I/O Size | 3" | 4" |
| UV Sensor | 1 | 1 |
| Temperature Sensor | 2 | 2 |
| Ozone Generators per Unit | 4 | 8 |
| Electrical Voltage Required | 220V | 220V |
| Single or 3 Phase Electrical | Single Phase | Single Phase |
| Watts | 844 | 1,688 |
| Amp Draw | 12 | 20 |
| Dimensions | 68" W x 20" D x 59" H | 70" W x 24" D x 62" H |
| Weight | 265 lbs | 350 lbs |
| Shipping Weight | 385 lbs | 490 lbs |
